We67k-125t / 4000 electro hydraulic servo bending machine

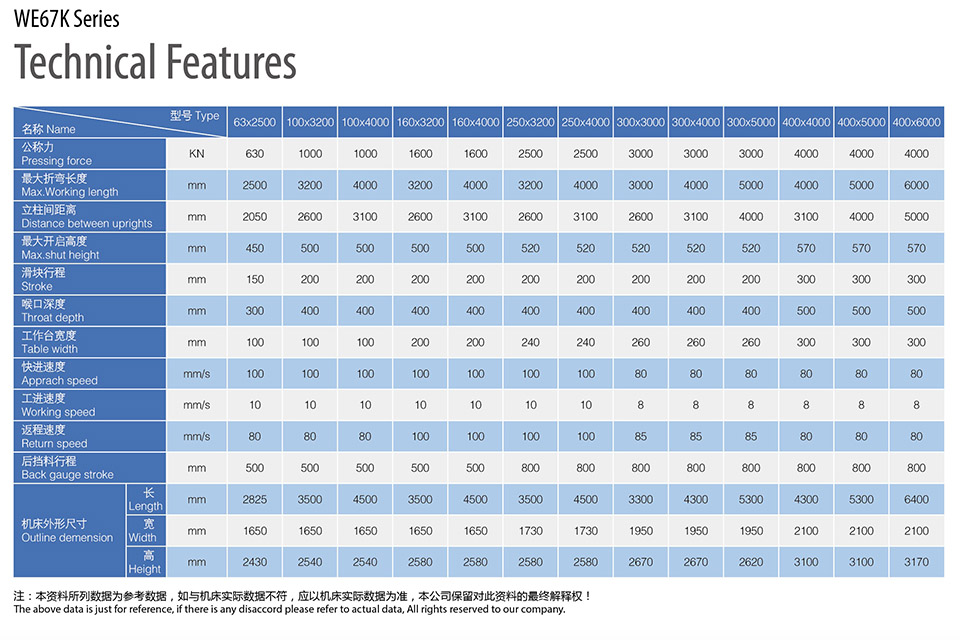

Technical parameter

Machine model we67k-125t / 4000

Nominal force 1250kn

Table length 4000mm

The width of worktable is 100 mm (the lower die is double V-type concentric die)

The distance between columns is 3100 mm

Throat depth 400mm

Slider stroke 200 mm

Maximum opening height 450mm

Sliding block fast down speed 120mm / S

The return speed of slider is 100 mm / s

The working speed of the slider is 10 mm / s

Main motor power 7.5kw

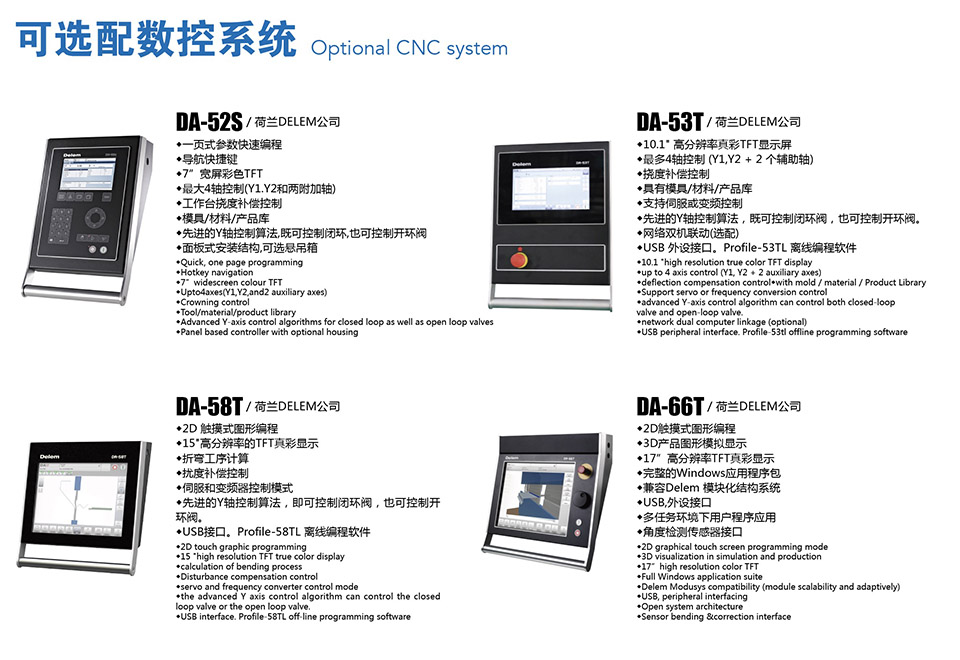

Numerical control system da53t

Number of control axes 4 + 1 (two axes of oil cylinder, front and rear axes of rear stop, lifting r axis + compensation axis)

X-axis stroke of rear stop 500mm

X-axis speed of back stop 200 mm / S

The thickness of wallboard, sliding block and worktable are 50mm, 60mm and 70mm respectively

Overall dimension 4200 × 1750 × 2520 mm

The weight is about 9.5T

Main configuration list

The control system is a Dutch delem da53t system

1 set of servo motor and driver

Hydraulic system 1 set, Germany

Two ball screws, Taiwan ABBA

Two linear guides, Taiwan ABBA

Connector 1 set of German emb

Seal ring 1 set, Japan NOK

Grating ruler 2 Italian GV

1 set of main electrical components Schneider

Main uses and product features

We67k series electro-hydraulic servo numerical control bending machine integrates numerical control technology, servo and hydraulic technology. The slider moves up and down periodically through the action of control valve, and the movement is measured by the grating reading on both sides of the machine. DNC controls the openings of the two valves of the left and right oil cylinders. If necessary, the flow in the oil cylinder can be redistributed by the servo valve to make the slider move in a straight line in the vertical direction. The amount of movement is determined by the newly measured pulse number.

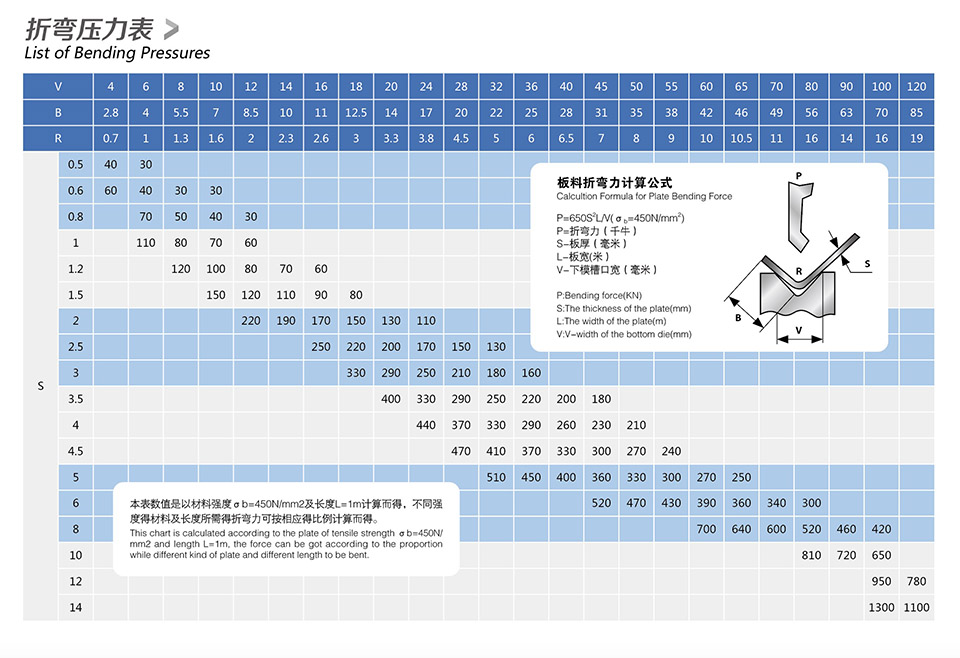

The electro-hydraulic servo CNC bending machine has high productivity and high working accuracy for bending metal sheet. When bending sheet with different thickness, the "V" groove with different opening size distributed on the lower die should be selected. Generally, the opening size of "V" groove should be greater than 8 If the upper and lower dies of different shapes are used, the workpieces of various shapes can be bent. At the same time, the bending force can be calculated by the bending force table (see machine tool) or bending calculation formula. After one stroke of the slider, the sheet metal can be bent once, and the workpiece with complex shape can be obtained after multiple bends. Electro hydraulic servo CNC bending machine adopts steel plate welding body, which has enough strength and rigidity. Hydraulic transmission ensures that it has automatic overload protection when it works. In addition, the machine has the characteristics of stable operation, convenient operation, safe and reliable. The machine is equipped with deflection compensation mechanism, which compensates the deflection produced by the force of the workbench and slider when bending the plate, so as to ensure a higher working efficiency Accuracy.

The machine adopts the advanced electro-hydraulic servo automatic control system, the positioning of the slider is accurate, and the operation is stable. The stroke and position of the slider can be adjusted according to the needs of the bending process, and it has the action specification of inching, which is convenient for die test and adjustment. With advanced technology and reliable performance, this machine is one of the ideal sheet metal forming equipment. It is widely used in flying machine

Machinery, automobile, shipbuilding, machinery and other operations, high production efficiency.

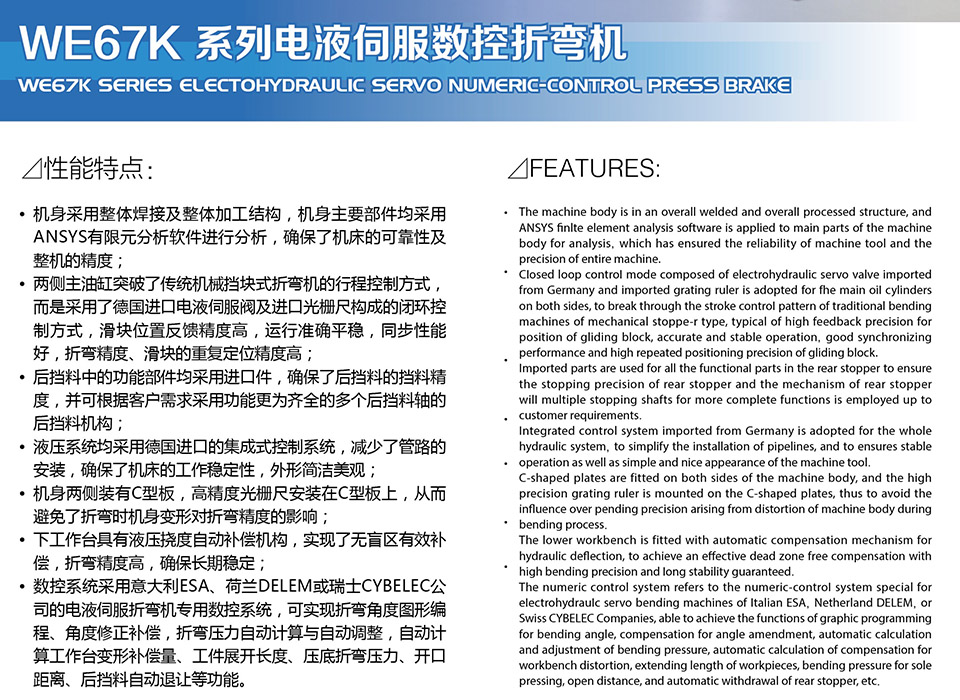

Technical characteristics

1. Both sides of the main cylinder synchronous use of imported electro-hydraulic servo valve and imported grating ruler to form a closed-loop control, accurate feedback, accurate operation of the slider, so that the bending accuracy, slider repeat positioning accuracy is high. The deviation is less than or equal to 0.05mm.

2. The repeated positioning accuracy of the back stop is ≤ 0.05mm, and the functional parts in the back stop are national or imported parts, which ensures the material blocking accuracy of the machine.

3. The fuselage adopts split steel plate welding structure. After vibration aging treatment, the deformation caused by welding stress and processing stress is removed, which ensures the accuracy and stability of the machine tool.

4. The fuselage, slide block and other important parts are analyzed and manufactured by finite element analysis software, which can ensure the working stability of the machine tool.

5. The hydraulic system adopts the imported integrated control system, reduces the pipeline installation, improves the working stability of the machine tool, and has beautiful and simple appearance.

6. The digital control system adopts the Dutch delem da53t system.

7. Both sides of the fuselage are equipped with C-shaped plates, and the high-precision grating ruler is installed on the C-shaped plate, so as to avoid the influence of fuselage deformation on the bending accuracy during bending.

8. Oil cylinders processed by professional manufacturers, complete sets of imported seals, and pipe joints imported from Germany EMB can overcome oil leakage.

Equipment working environment:

Power requirements: three phase four wire system, 380V, 50 Hz

Installation site: clean, less dust

Maximum temperature: 40 ° C

Minimum temperature: - 5 ° C

Relative humidity: 55-85%

Altitude: below 1000M

The equipment has enough strength and rigidity, low noise, stable operation, good seismic performance, and can be connected in this environment

Continuous operation for more than 16 hours.

Measurement standard of machine noise:

A-weighted sound pressure level LPA ≤ 82db (a)

A-weighted sound power level LWA ≤ 94 dB (a)

Standards for machine execution:

JB / T 2257.1-1992 technical conditions for sheet metal bending machine

JB / T 2257.2-1999 sheet metal bending machine type and basic parameters

GB / t14349-1993 accuracy of sheet metal bending machine

Dbs002-91 sheet metal bending machine performance and test method

After-sale service

Our company is committed to the development of new products, improve product quality at the same time, but also the world and the domestic set up a more perfect after-sales service network, after-sales service outlets all over the country. To provide our users with more convenient, more quality service.

1. For the equipment foundation, the supplier shall provide the drawings, and the Demander shall be responsible for the specific construction.

2. After the products are assembled in the supplier's factory, the buyer shall be informed of the specific delivery time and the preparation for installation.

3. The supplier shall be responsible for the commissioning work of the equipment on the site of the demander, and the Demander shall cooperate with it, and provide the lifting equipment, hydraulic oil, electricity and necessary conditions for installation.

4. During the installation and commissioning of the equipment on the demander's site, the supplier shall provide free training and technical consulting services for the demander's relevant technical personnel.

5. After the installation and commissioning, both parties shall make joint acceptance according to the technical agreement and relevant technical accessories signed by both parties.

6. The supplier's products shall be subject to "Three Guarantees" from the date of sale, and the warranty period shall be one year from the date of acceptance. During the warranty period, if the parts are damaged due to non user reasons, they shall be replaced free of charge (the vulnerable parts are not within the scope of warranty). After the expiration of the quality guarantee period, life-long warranty shall be implemented and the cost of production shall be charged.
